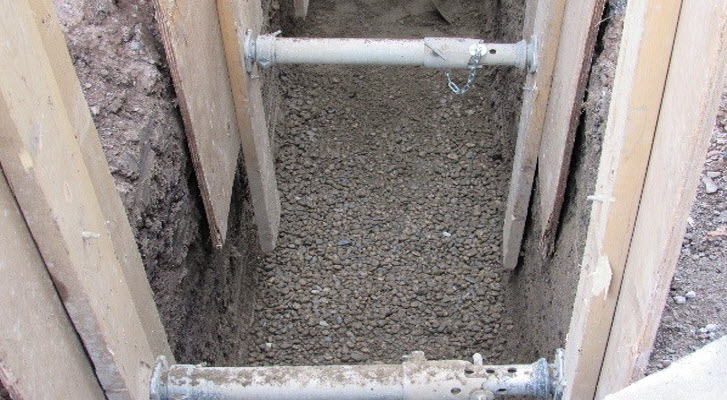

The Airshore Rescue Tool is a lightweight, positive locking, aluminium support strut which is activated manually or by air. The tools removable attachments and bases adhere to all shapes, surfaces and situations.
Designed for vertical, horizontal and angled support and stabilisation, the Airshore Rescue Tool will secure your rescue environment.
|Trouble Free:||The simple design and rugged construction ensures the Airshore Rescue Tool will operate under the worst rescue site conditions. Mud, dirt, sand or water will not effect the tools operation.|
|Maintenance Free:||No operation maintenance is required. Periodic cleaning is all that is neccesary.|
|Materials:||All aluminum and stainless steel construction for long life and weatherproof operation.|
|Lightweight:||The Rescue Tool weighs range from 9 lbs. (4.1 kg) to 45 lbs. (20.4 kg)|
|Pneumatic or Manual:||Safe, clean - No contaminants.|
|Installation:||Fast, simple and fool proof. No special tools required.|
|Portable:||Easy to handle and transport.|
|Adaptable:||Large variety of attachments and bases allows the tool to be used with all types and combinations of materials and configurations.|
|Positive Lock:||Mechanical lockout. No chance of creep back.|
Independent tests confirm crush strength of:
61,000 lbs. (27,700 kg) up to 4 ft. (1.2 m) & 42,000 lbs. (19,000 kg.) up to 12 ft (3.6m) using two pins.
|"A" Orange||18-27 in (45-68 cm)||12 lbs (5 kgs)|
|"B" Black||23-36 in (58-97 cm)||14 lbs (6 kgs)|
|"C" Red||30-48 in (76-121 cm)||17 lbs (7 kgs)|
|"D" Yellow||42-66 in (106-167 cm)||22 lbs (10 kgs)|
|"E" Blue||60-96 in (152-243 cm)||30 lbs (13 kgs)|
|"F" Green||90-120 in (228-304 cm)||35 lbs (15 kgs)|
|"G" White||114-144 in (289-365 cm)||40 lbs (18 kgs)|
