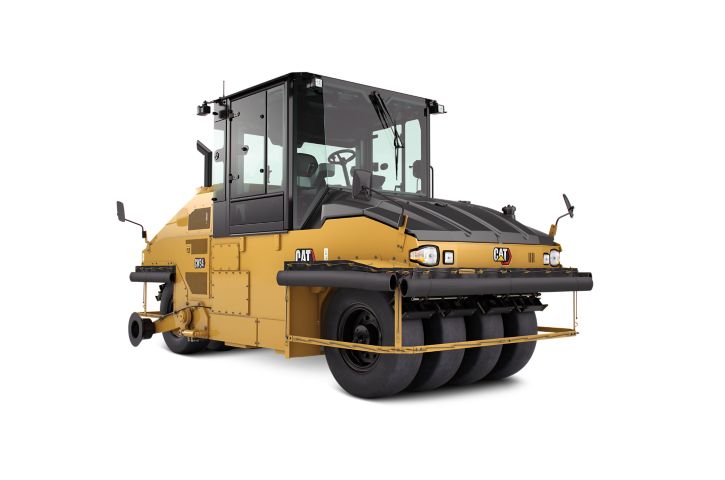

The CW34 is an eight wheel pneumatic roller that features a modular ballast system and flexible operating weight of 10 000 kg to 27 000 kg (22,050 lb - 59,525 lb). This machine offers excellent visibility, ECO-mode operation, even compaction, and excels on a variety of materials due to its flexible air-on-the-run capability.


Operating Weight - Max Ballast 59525.0 lb 27000.0 kg Less
Operating Weight - Standard Machine Empty 22050.0 lb 10000.0 kg Less
Operating Weight - Max Water Ballast 28660.0 lb 13000.0 kg Less
Operating Weight - Max Wet Sand Ballast 35275.0 lb 16000.0 kg Less
Average Weight per Wheel 3571.0 lb 1620.0 kg Less
Average Weight per Wheel - Max Ballast 7451.0 lb 3380.0 kg Less
Average Weight per Wheel - No Ballast 2755.0 lb 1250.0 kg Less
Operating Weight - No Ballast 22050.0 lb 10000.0 kg Less

Operating Specifications

Compaction Width 82.0 in 2090.0 mm Less
Turning Radius - Inside 240.0 in 6100.0 mm Less
Turning Radius - Inside 20.0 ft 6.1 m Less
Rolling Width 82.0 in 2090.0 mm Less
Turning Radius - outside 342.0 in 8700.0 mm Less
Ground Clearance 10.0 in 260.0 mm Less
Number of Wheels 8 8 Less
Travel Speed - Maximum 12.0 mph 19.0 km/h Less


Gross Power 133.0 hp 98.0 kW Less
Bore 4.13 in 105.0 mm Less
Stroke 5.0 in 127.0 mm Less
Engine Model C4.4 C4.4 Less


Overall Length 210.0 in 5350.0 mm Less
Overall Width 85.0 in 2160.0 mm Less
Height at Steering Wheel 96.0 in 2450.0 mm Less
Height at ROPS 118.0 in 3000.0 mm Less
Maximum Machine Height 118.0 in 3000.0 mm Less


Tires 13/80 R20 13/80 R20 Less

Service Refill Capacities

Fuel Tank Capacity 71.0 gal 270.0 L Less
Water (Spray) Tank Capacity 100.0 gal 380.0 L Less

Versatile Compaction Performance

Versatile Compaction Performance due to the flexible ballast system, oscillating front wheels, and optional air-on-the-run. Flexible ballast options include modular and non-modular steel, sand, and water. The modular steel ballast system can be easily added or removed, making it easy to adjust operating weights and match job site requirements.

Exceptional Visibility and Control

Exceptional Visibility and Control with sliding and rotating operator’s station, LCD display, touch-pad machine functions, and optional Compaction Control. This machine can be equipped with a Cab or ROPS.

Cat® Compaction Control

Cat® Compaction Control keeps the operator informed for higher performance and efficiency. Infrared temperature sensors combined with mapping keep the operator informed of when optimal conditions exist and where compaction has taken place. Temperature Mapping records data for future analysis, while Pass-Count Mapping keeps the operator informed of the number of passes made.

Smooth Operating Powertrain

Smooth Operating Powertrain with electronic propel control and smooth braking system. The three speed hydrostatic propel system delivers excellent gradeability with speeds up to 19 km/hr (11.8 mph).

Best Lifetime Value

Best Lifetime Value with ECO-mode operation, efficient engine, and durable rubber tires minimize life-time operating costs and maximize profit.
