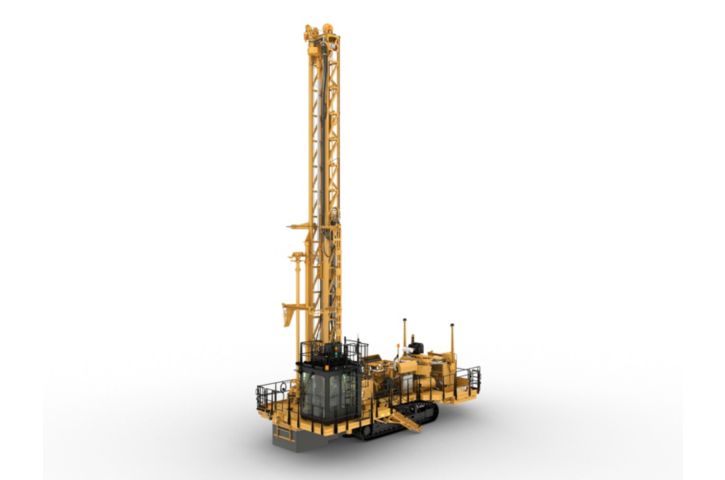

MD6250

Back


MD6250 Optional Equipment

FRAME
  • Fuel tank expansion of +1609 L (425 gal) for total of 3218 L (850 gal) (option) required for autonomy packages
  • Fire suppression ready (includes platform on non-drill end to mount bottles, and frame around power train to mount nozzles)

MAST
  • Overhead winch with remote; variable speed drive with ≥ 1818 kg (4,000 lb) rating, length to reach 6 m (20 ft) past drill deck (option)
  • Tool oiler, 113 L (30 gal) oil injection system for Rotary Drilling

SERVICE TOOLS
  • Bushing retention tool – 89 to 152 mm (3.5 to 6.0 in) wrench flats
  • Lifting bails (available on request; required for commissioning)
  • API thread 89 mm (3.5 in)
  • API thread 114 mm (4.5 in)
  • API thread 140 mm (5.5 in)
  • BECO thread 89 mm (3.5 in)
  • BECO thread 101 mm (4.0 in)
  • BECO thread 114 mm (4.5 in)
  • BECO thread 165 mm (6.0 in)

OPERATOR ENVIRONMENT
  • Fold up trainer's seat with seat belt
  • Manometer pressure gauge
  • Window guard
  • Window shades
  • Cab roof access system with ladder, cage and rails

TECHNOLOGY PRODUCTS
  • Product Link Elite; satellite, cellular or dual

DUST SUPPRESSION
  • Dust curtain hydraulic lifters raise front and rear dust curtains (recommended with dust collector)
  • Tram off spray system

WORK TOOLS
  • Rotary tool lubrication system

DRILL PIPE
  • Standard carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast – Accepts quantity of four (4)
    – Rotary 127 mm (5 in)
    – Rotary 152 mm (6 in)
    – Rotary 178 mm (7 in)
    – Rotary 193 mm (7.625 in)
    – DTH 139 mm (5.5 in)
    – DTH 165 mm (6.5
  • Standard carousel pipe: 10.6 m (35 ft) pipes for 11.2 m (36.7 ft) Mast – Accepts quantity of four (4)
    – Rotary 127 mm (5 in)
    – Rotary 152 mm (6 in)
    – Rotary 178 mm (7 in)
    – Rotary 193 mm (7.625 in)
    – DTH 139 mm (5.5 in)
    – DTH 165 mm (6.5
  • Dual purpose carousel pipe: 6.09 m (20 ft) pipes for 13.6 m (44.6 ft) Mast – Accepts quantity of two (2)
    – Quantity of two (2) 3 m (10 ft) starter pipes are included in the drill tool package
    – Rotary and DTH 140 mm (5.5 in)
    – Rotary and DTH 168
  • Dual purpose carousel pipe: 10.6 m (35 ft) pipe for 11.2 m (36.7 ft) Mast – Accepts quantity of two (2)
    – Quantity of two (2) 7.6 m (25 ft) starter pipes are included in the drill tool package
    – Rotary and DTH 140 mm (5.5 in)
    – Rotary and DTH 168
