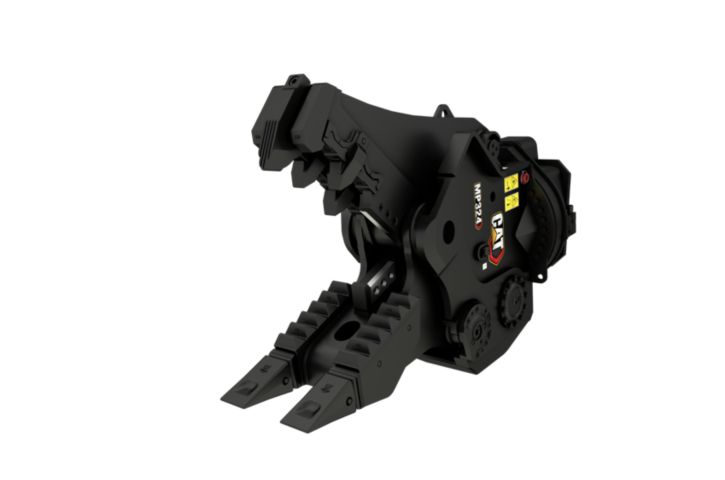

MP324 Pulverizer Jaw

Back


View Product Downloads

Overview

Units:
Length 85.9 in 2183.0 mm Less
Height 57.7 in 1466.0 mm Less
Width 31.2 in 793.0 mm Less
Jaw Depth 30.1 in 764.0 mm Less
Jaw Width, fixed 20.4 in 519.0 mm Less
Jaw Width, moveable 13.3 in 337.0 mm Less
Jaw Opening, max. 38.0 in 965.0 mm Less
Cutter Length 7.9 in 200.0 mm Less
Weight (housing, jaw & bracket) 6217.0 lb 2826.0 kg Less
Weight (jaw only) 2640.0 lb 1200.0 kg Less
Cycle time 3.0 Seconds 3.0 Seconds Less
Crushing Force, tooth tip 1091.0 Sh Ton 971.0 kN Less
Crushing Force, cutter tip 162.8 Sh Ton 1449.0 kN Less
Crushing Force, primary cutter 368.2 Sh Ton 3277.0 kN Less
