Studio Shot

457 mm (18 in)

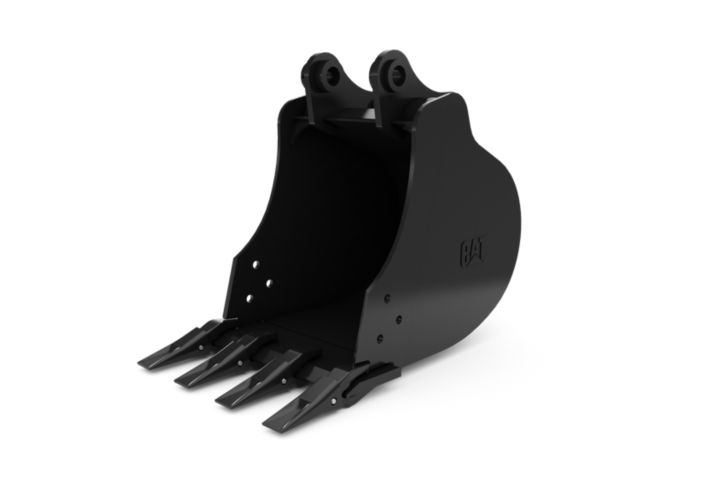

Heavy Duty Buckets - Mini Excavator

Width 18.0 in 457.0 mm
Capacity 2.9 ft³ 82.09 l
Weight 180.8 lb 82.0 kg
Request A Demo

High strength buckets designed for maximum performance and value over a broad range of applications.

Compare Models
expand / collapse icon
Width 18.0 in 457.0 mm
Capacity 2.9 ft³ 82.09 l
Weight 180.8 lb 82.0 kg
Base Edge Thickness 0.8 in 20.0 mm
Tip Radius 28.0 in 710.0 mm
Interface Type Pin On Pin On

Application

Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed. Ideal for utility trenching, digging footings, back-filling and general excavating in construction, landscaping and utility applications.

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
