Maximize your ERA Funding with Cat G3600 Upgrade Kits

With the new Methane Reduction Deployment Program Emissions Reduction Alberta (ERA) announced, there's never been a better time to upgrade your Cat® G3600 engines.

More about the Methane Reduction Deployment Program

Finning is offering All-Inclusive pricing on our GHG and CCV upgrade kits on G3600 engines.

There are three upgrade kits for Cat G3600 engines that will help to reduce emissions, extend the life of your engine, and maximize its performance:

  • Closed Crankcase Ventilation (CCV) System
  • A3 Gen 2 Upgrade
  • A4 Gen 2 Upgrade

These engineering updates work with existing Cat® engines of any age.

As gas compression operators face evolving regulatory and operational requirements, these upgrades help you stay compliant and competitive

Gen 2 Kits. A Next Level Upgrade. Gen 2 Kits. A Next Level Upgrade.

Looking To Use The New ERA Funding To Upgrade Your Cat G3600 Engine With Our Gen 2 Kits?

Download Brochure

Features and Benefits of Upgrade Options

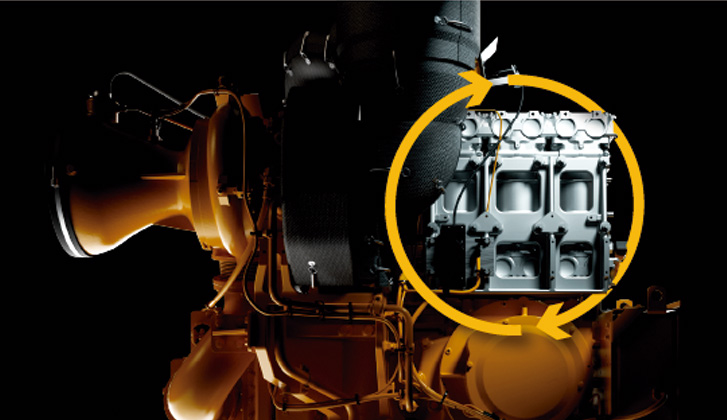

Closed Crankcase Ventilation (CCV) System

The Cat Closed Crankcase Ventilation (CCV) System, a field-proven technology, is designed to eliminate the venting of crankcase gases, commonly referred to as blow-by emissions, from internal combustion engines.

Specifically designed for Cat G3600 solutions, the engine-mounted CCV system holds multiple unique patents that distinguish it from conventional CCV approaches. It can be applied at any time with minimal downtime.

Features & Benefits:

  • Eliminates crankcase emissions
  • Easy to install as a bolt-on retrofit at any time
  • Operational in low ambient temperatures with minimal risk of condensation
  • Reduces up to 20% methane emissions from gas engine*
  • 8,000-hour filter change service interval
  • Reduces lube oil consumption
  • Helps eliminate facility contamination
  • Longer service intervals
  • Maintains crankcase pressure at 0 kPa

A3 Gen 2 Upgrade

Caterpillar first released G3600 engines into the field in 2002, and the A3 has been an active player ever since. With the latest A3 upgrade kit, your engine will experience updated emissions benefits compared to the original A3 model. This kit can be applied at any time but is most cost-effective when applied at a major overhaul (recommended around 100,000 hours). Extend the value of your existing engine today.

Features and Benefits:

  • Features advanced combustion technology
    • Updated piston, rings, liner and pre-chamber design
    • Lower emissions through reduced crevice volumes and improved combustion
    • Cuffed liner to reduce risk of carbon deposits
  • Emission reduction in GHGs, VOCs, CO2 and formaldehyde
    • Helps existing engines meet regulatory emissions requirements
  • Maintains the same engine maintenance intervals with updated hardware
  • Available in both 0.5 g/bhp∙hr and 0.7 g/bhp∙hr NOx ratings
  • Most cost-effective when applied at in-frame and major overhaul

A4 Gen 2 Upgrade

The Cat A4 Gen 2 kit was designed to keep your engine relevant. This kit is stacked with options, allowing you to customize your kit based on what’s most important to you—whether that’s emission reduction, optional horsepower or increased altitude capabilities. With tested and vetted parts customers have come to trust, the Gen 2 kit extends your investment while delivering on improved emission reductions and durability. Upgrades can be performed at any time but are most cost-effective at a major overhaul (recommended every 100,000 hours).

Features and Benefits:

  • Features advanced combustion technology
    • Updated piston, rings, liner and pre-chamber design
    • Lower emissions through reduced crevice volumes and improved combustion
    • Cuffed liner to reduce risk of carbon deposits
  • 10% horsepower uprate, optional through engine software rating selection
  • Emission reduction in methane, GHGs, VOCs, CO2 and formaldehyde
    • Helps existing engines meet regulatory emissions requirements
  • Need-based customer options
    • Option 1: Emission reduction only, no horsepower increase or turbocharger change
    • Option 2: Emission reduction, 10% more horsepower and increased altitude
  • Maintains the same engine maintenance intervals with updated hardware
  • Available in both 0.3 g/bhp∙hr and 0.5 g/bhp∙hr NOx ratings
  • Most cost-effective when applied at in-frame and major overhaul
  • Base horsepower offering (Option 1) allows users to take advantage of emissions benefit while maintaining standard compressor match and package layout

* Using OEM data, Reflect G3608 A4, 0.3 g/bhp∙hr NOx, 8760 hours/year, 24 hours labor hours x 2 technicians to install CCV system & package changes, service cost.
