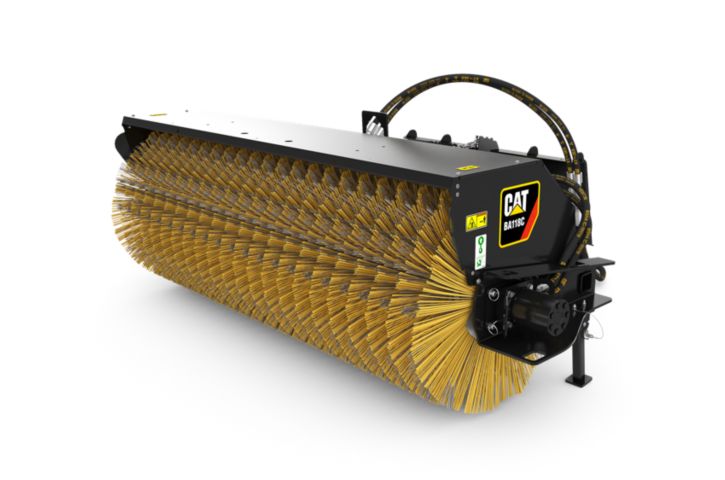

BA118C Manual

Application

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Reliable Hydraulic Motor

Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines. The motor is easily removed using quick release pins for bristle wafer replacement.

Parking Supports

Parking supports provide stable and secure parking of the unit.

Optional Dust Control

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.

Broom Material

Standard broom material is made of replaceable polypropylene and steel wire sections.

Select Units

Overview

Cat® Angle Brooms are used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

  • Overall Width 104.0 in 2637.0 mm
  • Sweeping Width 83.0 in 2119.0 mm
  • Brush Diameter 32.0 in 815.0 mm
  • Brush Speed at Maximum Flow 199 rpm 199 rpm
  • Height 36.0 in 918.0 mm
  • Length 69.0 in 1741.0 mm
  • Motor Displacement 25.0 in³ 405.0 cm³
  • Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
  • Required Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
  • Sweeping Width - Angled (± 30 Degrees) 73.0 in 1849.0 mm
  • Weight 905.0 lb 411.0 kg
  • Drive Method Direct Drive Direct Drive
  • Optional Hood Extension 40.0 lb 18.0 kg
  • Overall Width - Angled (± 30 Degrees) 99.0 in 2508.0 mm
  • Required Hydraulics Standard Flow Standard Flow
