Studio Shot

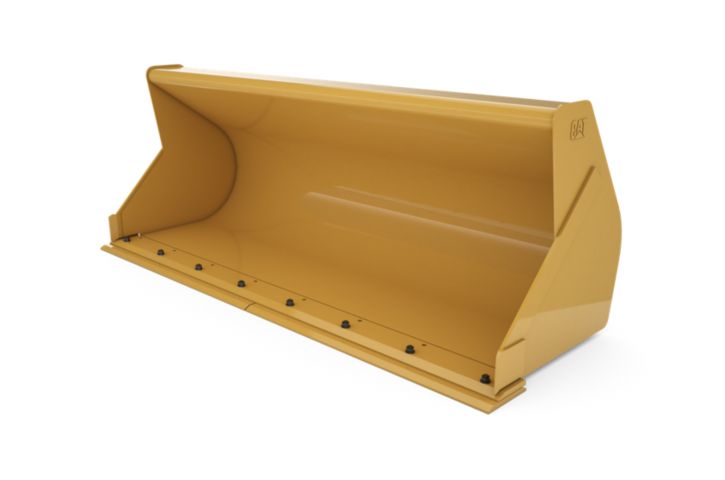

1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge

General Purpose Buckets

Width 89.1 in 2262.0 mm
Height 33.9 in 862.0 mm
Weight 1021.0 lb 463.1 kg
Request A Demo

Load, carry, dump and perform general clean-up work.

Compare Models
expand / collapse icon
Width 89.1 in 2262.0 mm
Height 33.9 in 862.0 mm
Weight 1021.0 lb 463.1 kg
Length 40.0 in 1016.0 mm
Capacity 1.3 yd³ 1.0 m³
Base Edge Thickness 0.8 in 20.0 mm
Cutting Edge Thickness 0.7 in 19.0 mm
Interface Type Pin On Pin On

Application

Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials.

Bucket Design

Formed back wrapper design enhances bucket loading and production in a wide variety of applications.

Superior Bucket Fill

Optimum wrapper angle and lack of sharp corners promote superior bucket fill and reduce material packing for greater productivity.

Ground Engaging Tools

Base bucket also available with bolt-on cutting edge and bolt-on teeth.
