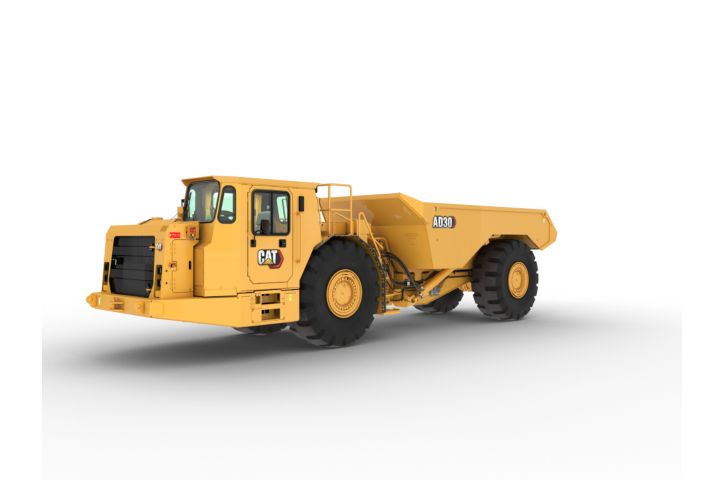

AD30

Power Train – Engine – The Cat C15 engine is designed for power, reliability and efficiency.

See more

Power Train – Transmission – More power to the ground for greater productivity.

See more

Engine/Power Train Integration – Intelligent electronics for overall optimal performance.

See more

Cat Brake System – Superior control for operator confidence.

See more

Operator Comfort – Ergonomically designed for all-day comfort, control and productivity.

See more

Truck Body Systems – Rugged performance and reliability in tough underground mining applications.

See more

Structures – Rugged Cat structures – the backbone of the AD30’s durability.

See more

Serviceability – More time for production.

See more

Customer Support – Cat dealer services keep underground mining equipment productive.

See more

Safety – Designed with safety as the first priority.

See more

AD30 Standard Equipment

ELECTRICAL

  • 12V power supply in cab
  • Alternator, 95-amp
  • Auxiliary start receptacle
  • Battery disconnect switch, ground level
  • Circuit breaker, 80-amp
  • Corrosive protection spray
  • Diagnostic connector
  • Electric starting, 24V
  • Engine shutdown switch, ground level
    – Front left hand side
  • Lighting
    – Brake and tail light, LED
    – Headlights with dimmer switch, halogen
    – Rear work light (cab mounted), halogen
    – Reversing lights, halogen
  • Low maintenance batteries
  • Reversing alarm
  • Starting and charging system

OPERATOR ENVIRONMENT

  • Cat Electronic Monitoring System (Cat EMS)
  • Electric horns
  • Gauges
    – Engine coolant temperature
    – Transmission coolant temperature
    – Hydraulic oil temperature
    – Fuel level
    – Speedometer
    – Tachometer
  • Indicator lights
    – Alert warning light
    – Body up position warning
    – High beam
    – Residual brake pressure warning
    – Retarder application
    – Turn signal
  • Low hydraulic level warning
  • Open operator station ROPS/FOPS structure
  • Operator presence system (auto park brake)
  • Rearview mirrors
  • Suspension seat Cat Comfort TLV2 with retractable seat belt
  • Trainer/passenger seat and seat belt
  • Tilt/telescopic steering wheel

POWER TRAIN

  • Cat C15 ATAAC diesel engine, 6-cylinder
  • Automatic brake retarder control
  • Auto shift transmission 4 speed forward/1 speed reverse
  • Axle, arrangement standard width, front – rear
  • Control throttle shifting
  • Engine air intake precleaner
  • Electric fuel priming pump
  • Exhaust, turbo compartment shielding
  • Four wheel drive
  • Long life coolant
  • Programmable ground speed limiting
  • Programmable gear block out with tray up
  • Radiator cap manual release
  • Radiator, cross flow
  • Rims, 5-piece, tubeless
  • SAFR™ full hydraulic enclosed wet, multiple-disc brakes, oil cooled
  • Torque converter with automatic lockup

OTHER STANDARD EQUIPMENT

  • Body, dump, (14.4 m³/18.8 yd³)
  • Catalytic exhaust purifier/muffler group
  • Centralized lubrication points
  • Decals, international picto graphics
  • Engine and transmission belly guards
  • Fenders, standard with, front, rear flaps
  • Fire wall
  • Fuel system manual shut off tap
  • Frame lifting lugs
  • Front and rear tow pin
  • Hand hold (access on/off top deck)
  • Hitch, articulated and oscillated
  • Operation and Maintenance Manual – English and other applicable local languages to select
  • S·O·S port
    – Coolant
    – Engine oil
    – Hydraulic oil
    – Transmission oil
  • Swing out radiator grill
  • Tires and rims: A tire must be selected from the mandatory attachments section of the machine price list. Base machine price includes a standard tubeless rim allowance only.

AD30 Optional Equipment

OPTIONAL EQUIPMENT

  • Axle, arrangement wide body, front – rear
  • Battery shutdown
    – Ground level isolation, in cab isolation switch
    – Ground level isolation, engine shutdown switch
    – Ground level isolation, in cab isolation, engine shutdown switch
  • Body dump
    – Body, (11.3 m³/14.8 yd³)
    – Body, (16.8 m³/21.9 yd³) wide body configuration
    – Body, (17.5 m³/22.9 yd³)
  • Body ejector
    – Ejector, (15.2 m³/19.9 yd³)
    – Ejector, (16.8 m³/21.9 yd³)
  • Body liners, impact and wear
    – 10 mm (0.4"), body, dump (11.3 m³/14.8 yd³)
    – 10 mm (0.4"), body, dump (14.4 m³/18.8 yd³)
    – 10 mm (0.4"), dump (16.8 m³/21.9 yd³) for wide body configuration
    – 10 mm (0.4"), body, dump (17.5 m³/22.9 yd³)
  • Brake pressure gauges
  • Camera, color rear facing
  • Cover, anti vandalism for shipping
  • Engine options
    – Engine, Ventilation Reduction (VR)
    – Equivalent to Tier 3
    – After-treatment options (for use with VR Engine only)
    • DPF (Flow Through) Filter
  • Fast fill system
    – Coolant
    – Engine oil
    – Fuel (single tank)
    – Hydraulic oil
    – Transmission oil
  • Fenders, wide body, front, rear flaps
  • Fire suppression system
    – Ansul, dry powder
    – Foam, water based
  • Fluids
    – Arctic fuel
    – Arctic coolant
  • Lighting
    – Headlights with dimmer switch, LED
    – Rear work light (cab mounted), LED
    – Reversing lights, LED
  • Lubrication system
    – Automatic, dump or ejector body
    – Centralized, ejector body
  • Mine transfer
    – Mine transfer ready front frame (tack welded)
    – Mine transfer ready dump body (tack welded)
    – Mine transfer ready ejector body (tack welded)
  • Operators station ROPS/FOPS enclosed
    – Air conditioning
    – Cab pressurizer and filter
    – Dome light
    – Heater
    – Radio ready compartment for radio and speakers
    – Sun visor
    – Window, sliding cab door
  • Park brake switch engagement
    – Push to apply
    – Pull to apply
  • Payload
    – Truck Payload Measurement System (TPMS)
    – Remote display for TPMS
  • Reflective tape
  • Rims
    – Rim identification numbering
    – Spare, tubeless
  • Seat
    – Suspension seat Cat Comfort TLV2, vinyl
    – Suspension seat tee, mechanical
  • Seat cover
    – Tee and Cat Comfort TLV2
    – Seat cover, companion
  • Secondary steering system
  • Service tools
    – Collet jacking bolts, dump and ejector
    – Diagnostics box
    – Hoist cylinder supports (for body removal)
    – Brake wear gauge
    – Reference parts manual for additional tooling available
  • Switches
    – Engine shutdown, fire suppression activation
    – Idle timer
    – Engine shutdown, fire suppression activation/idle timer
  • Technology
    – Vital Information Management System (VIMS) Gen 3
  • Tire arrangements
    – Tire, 26.5 × 25 VSNT Bridgestone
    – Tire, 26.5 × 25 VSDL Bridgestone
  • NOTE: Not all features are available in all regions. See your Cat dealer for more information.

Select Units

Overview

The AD30 underground mining truck is designed for high production, low cost-per-ton hauling in smaller underground mining applications. Rugged construction and easy maintenance guarantee long life with low operating costs.
Engineered for performance, designed for comfort, built to last.

Engine

  • Engine Model Cat® C15 Cat® C15
  • Gross Power - SAE J1995 409.0 HP 305.0 kW
  • Gross Power - VR Engine - SAE J1995 409.0 HP 305.0 kW
  • Gross Power - Tier 3 Engine - SAE J1995 409.0 HP 305.0 kW
  • Bore 5.4 in 137.2 mm
  • Stroke 6.8 in 171.5 mm
  • Displacement 928.0 in³ 15.2 l
  • Gross Power - Equivalent to U.S. EPA Tier 3/EU Stage IIIA - SAE J1995 409.0 HP 305.0 kW
  • Note (1) Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard. Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard.
  • Note (2) Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
  • Note (3) Engine derate will commence at an altitude of 2743 m (8,999 ft). Engine derate will commence at an altitude of 2743 m (8,999 ft).
  • Note (4) Optional Ventilation Reduction package available. Optional Ventilation Reduction package available.
  • Note (5) Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU stage IIIA is also available. Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU stage IIIA is also available.
  • Rated Power 1800.0 r/min 1800.0 r/min

Operating Specifications

  • Nominal Payload Capacity 66139.0 lb 30000.0 kg
  • Gross Machine Mass 132300.0 lb 60000.0 kg
  • Body Capacities 11.3-17.5 m³ (14.8-22.9 yd³) 11.3-17.5 m³ (14.8-22.9 yd³)

Weights

  • Empty 63647.0 lb 28870.0 kg
  • Loaded 132277.0 lb 60000.0 kg
  • Empty - Front Axle 42944.0 lb 19479.0 kg
  • Empty - Rear Axle 20704.0 lb 9391.0 kg
  • Loaded - Front Axle 58451.0 lb 26513.0 kg
  • Loaded - Rear Axle 73826.0 lb 33487.0 kg

Weight Distribution

  • Empty - Front Axle 67.50% 67.50%
  • Empty - Rear Axle 32.50% 32.50%
  • Loaded - Front Axle 44.20% 44.20%
  • Loaded - Rear Axle 55.80% 55.80%

Transmission

  • Forward - 1 3.9 mile/h 6.3 km/h
  • Forward - 2 7.0 mile/h 11.3 km/h
  • Forward - 3 12.9 mile/h 20.8 km/h
  • Forward - 4 22.8 mile/h 36.7 km/h
  • Reverse - 1 4.4 mile/h 7.1 km/h
  • Note Maximum travel speeds with standard 26.5 × R25 tires. Maximum travel speeds with standard 26.5 × R25 tires.

Final Drives

  • Differential Ratio 3.38:1 3.38:1
  • Final Drive Ratio 4.76:1 4.76:1
  • Total Reduction Ratio 16.13:1 16.13:1
  • Note Fully floating axles. Fully floating axles.

Body Hoist

  • Raise 10.5 s 10.5 s
  • Lower 11.2 s 11.2 s
  • Total Cycle Time 21.7 s 21.7 s

Body Capacities

  • Body 1 14.8 yd³ 11.3 m³
  • Body 2 - Standard Body 18.8 yd³ 14.4 m³
  • Body 3 22.9 yd³ 17.5 m³
  • Wide Body 21.9 yd³ 16.8 m³
  • Ejector Body (1) 19.9 yd³ 15.2 m³
  • Ejector Body (2) 21.9 yd³ 16.8 m³
  • Note Heaped SAE 2:1. Heaped SAE 2:1.

Turning Dimensions

  • Outside Clearance Radius 337.4 in 8571.0 mm
  • Inner Clearance Radius 198.0 in 5030.0 mm
  • Articulation Angle 42.5 ° 42.5 °
  • Frame Oscillation 10 Degrees 10 Degrees

Service Refill Capacities

  • Engine Crankcase - With Filter 9.0 gal (US) 34.0 l
  • Transmission 18.0 gal (US) 67.0 l
  • Hydraulic Tank 38.0 gal (US) 145.0 l
  • Cooling System 20.0 gal (US) 74.0 l
  • Front Differential and Final Drives 15.0 gal (US) 56.0 l
  • Rear Differential and Final Drives 15.0 gal (US) 56.0 l
  • Fuel Tank 108.0 gal (US) 410.0 l

Tires

  • Tire Size 26.5 × R25 VSNT 26.5 × R25 VSNT

Standards

  • Standards ROPS/FOPS Certified Cab ROPS/FOPS Certified Cab
Customer Stories

Discover what’s new and how customers like you are benefiting from our products and services. Check back often for updates.

Promotions

Looking for that perfect piece of used equipment to complement your fleet? Check out our Used Exclusives, featuring new machines every week!

Social

Let’s talk. Connect with us on one of our social channels to start the conversation and see what we’re up to.

Branch Locator

Looking for your nearest branch? Get in touch with us today by contacting one of our branches directly. We’re always ready to help.

Services

When you choose Finning, you have a wide array of support and specialty services to help you get the most from your equipment.

Technology

Integrated technology can help you understand your equipment's output and help extend its lifespan.

Finance

Choose from a range of financing solutions that allow you to purchase equipment, parts, services, and technology when you need it.
