Studio Shot

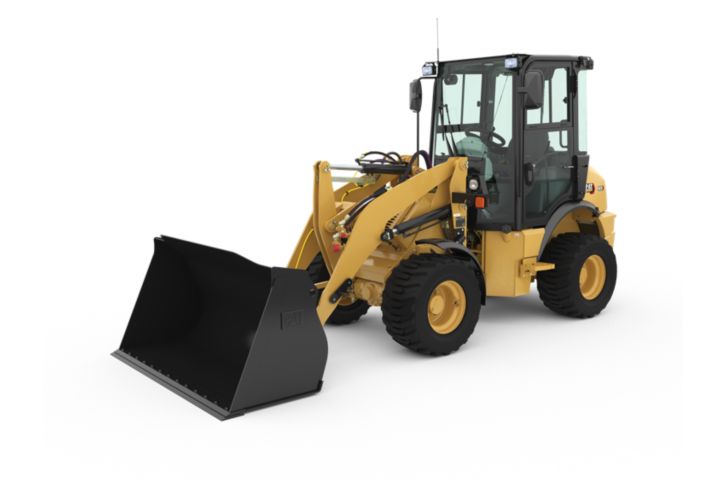

903D

Compact Wheel Loaders

Maximum Gross Power 42.0 HP 31.0 kW
Operating Weight 9414.0 lb 4270.0 kg
Bucket Capacities 0.6-1.0 m3 (0.8-1.3 yd3) 0.6-1.0 m3 (0.8-1.3 yd3)
Request A Demo

The Cat® 903D is compact, yet powerful, delivering high performance with outstanding versatility. A 25% increase in lift capacity and travel speed will allow the operator to be more productive, while new optional features such as engine and ground speed control, provides customizable control when running hydro-mechanical work tools. With a more ergonomic cab, new multi-function joystick, and optional ride control, the 903D allows the operator to enjoy all day comfort.

Compare Models
Engine
expand / collapse icon
Maximum Gross Power 42.0 HP 31.0 kW
Engine Model Cat C2.4* Cat C2.4*
Gross Power 42.0 HP 31.0 kW
Net Power - 2,200 rpm - SAE J1349 R-ing 40.0 HP 30.0 kW
Net Power - 2,200 rpm - ISO 9249 R-ing 40.0 HP 30.0 kW
Bore 3.4 in 87.0 mm
Stroke 4.0 in 102.0 mm
Displacement 147.0 in² 2.4 l
Note *Engine meets U.S. EPA Tier 4 Final emission standards. *Engine meets U.S. EPA Tier 4 Final emission standards.

Work Made Easy

The 903D Makes Work Easy with a 25% increase in tipping capacity to handle classic landscaping materials along with a 25% faster ground speed. The optional hydraulic Skid Steer Loader style coupler allows for changing work tools without getting out of the cab. Optional front and rear diff-lock can be activated on the fly, providing maximum traction in slick underfoot conditions.

Enjoy All Day Comfort

Operators will Enjoy All Day comfort with a new multi-function joystick, increased leg room, improved pedal positioning, easier entry/exit and optional speed sensitive ride control. The minimal engine overhang provides excellent rear and corner visibility, making the 903D easy to operate in confined areas.

Configured for Success

Configure the 903D for success with new options such as engine and ground speed control, ideally suited for hydro-mechanical work such as using a broom. With the addition of a Worktool Electrical Harness option, you can now run more tools than ever before. Two loader linkage options, standard and high lift, provide either improved capacity or improved lift height based on your application.

Simply Reliable

Fully opening rear hood allows easy access to the engine compartment featuring side-by-side coolers and transparent fuel/water separator with optional engine air precleaner and radiator screen for high debris applications. New rear tie down locations under the machine allow for easier transport, while a new engine oil fill location allows for easier access during engine oil changes.

903D Standard Equipment

POWER TRAIN
expand / collapse icon
  • Air cleaner, two stage with visual indicator
  • Cat C2.4 engine:
    – Meets U.S. EPA Tier 4 Final emission standards
  • Closed circuit breather
  • Cold start plugs
  • Electrical fuel priming pump
  • Eco drain, engine oil
  • Extended life coolant protects to –37° C (–34° F)
  • Frame mounted heavy duty axles with outboard planetary reduction
  • Maintenance free, sealed for life, prop shaft and universal joints
  • Transmission, 20 km/h (12.4 mph)

903D Optional Equipment

OPTIONAL EQUIPMENT
expand / collapse icon
  • Air conditioning/heater
  • Alternator, 90 amp for air conditioning
  • Antifreeze/coolant, extended life, protects to –50° C (–58° F)
  • Beacon ready
  • Cab:
    – Open
    – Enclosed
  • Differential lock, front and rear axles
  • Hydraulic quick coupler, skid steer loader compatible
  • Engine air precleaner
  • Engine block heater 120V (dealer installed)
  • Engine Speed Control (Throttle Lock)
  • Fenders:
    – Rear only
    – Front and rear
  • Ground Speed Control (Creeper Control)
  • Linkage:
    – Standard lift
    – High lift
  • Radiator debris screen
  • Radio Ready or AM/FM radio
  • Ride Control
  • Seats:
    – Mechanical suspension, vinyl with 51 mm (2 in) seat belt
    – Mechanical suspension, vinyl with 75 mm (3 in) seat belt
    – Mechanical suspension, fabric with 51 mm (2 in) seat belt
    – Mechanical suspension, fabric with 75 mm (3 in) seat belt
  • Tires:
    – 12-16.5 10PR
    – Flotation 33-15.5 × 16.5
    – Flexport™ 33 × 6 × 11
  • Working lights, front and rear:
    – Halogen
    – LED
  • Work Tool Electrical Harness
