Finning Rental Power Fleet

Rental Electrical Panels

BEST IN CLASS POWER DISTRIBUTION PANELS

Rental Electrical Panels

BEST IN CLASS POWER DISTRIBUTION PANELS

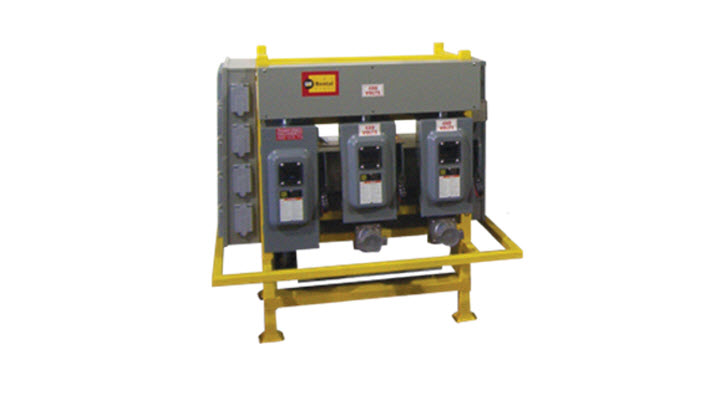

Finning offers power distribution solutions for all needs in a variety of equipment packages. We have a full line of NEMA 3R, outdoor rated electrical distribution panels and equipment ranging in sizes. Our weatherproof electrical panels are designed to be portable, safe and easily installed through industry-standard connectors.

Electrical Panel Features:

  • Rugged, Non-conductive enclosures
  • UL listed-NEMA 3R
  • Heavy duty stainless steel frames
  • Flexible breaker interior with hinged dead-front
  • Factory tested
  • CSA approved




Technical Information

Low Voltage

TYPE AMPACITY VOLTAGE(MAX) ENCLOSURE
I-Line Power Distribution Panel 400 - 1200AMPS 600V 3PH NEMA 3R
SP100-225 AMP Splitter Stand 100AMP 600V NEMA 3R
8 Outlet Low Profile High Voltage Panel 200AMP 480/600V NEMA 3R
4 Outlet Low Profile High Voltage Panel 225AMP 480/600V NEMA 3R
LV3 Free Standing Low Voltage Panel 225AMP 480/600V 3PH NEMA 3R
LV1 Low Voltage Panel 100AMP 480/600V NEMA 3R
Table Style C Panels 100/225AMP 120/208 3PH
20/240V Single Phase
NEMA 3R
Pony Board - 8cct 100Amp 8 Circuit - 120/240V 1PH NEMA 3R
Pony Board - 24cct 200Amp 24 Circuit - 120/208V 3PH NEMA 3R
Spider Boxes 30Amp & 50Amp 120/240V NEMA 3R
Oscar Box 50AMP 125/250V NEMA 3R
Dog Sleds 225AMP 120/208V Secondary
480/600V Primary
NEMA 3R
Mini Power Centre 100A 10KVA 480/600V: 120/240V 1PH c/w 8cct Panel NEMA 3R
Welder Splitter Station 60AMP 120/208V Secondary
480/600V Primary
NEMA 3R
Circuit Breaker 600 - 1600 AMP 600V NEMA 3R
Common Bus 400 - 6000 AMP 600V NEMA 3R
Splitter Box 400 AMP 600V NEMA 3R

Medium Voltage

TYPE AMPACITY VOLTAGE(MAX) ENCLOSURE
Fused Disconnect Switches 200-600A 5kV - 27kV NEMA 3R
Switchgear 400-1200A 5kV - 15kV NEMA 3R
Manual Transfer Switch 600A 5kV NEMA 3R
5kV

What's Your Project?

Our team is experienced with a number of different applications including:

  • Big and small events
  • Unplanned/planned outages & shutdowns
  • Construction site support
  • Oil/gas/pipeline

Our experts are ready to assist you with setup & commissioning, maintenance (included in rental), available operators, site preperation, and supplying any needed transformers. What are you waiting for? Reach out to us today.
