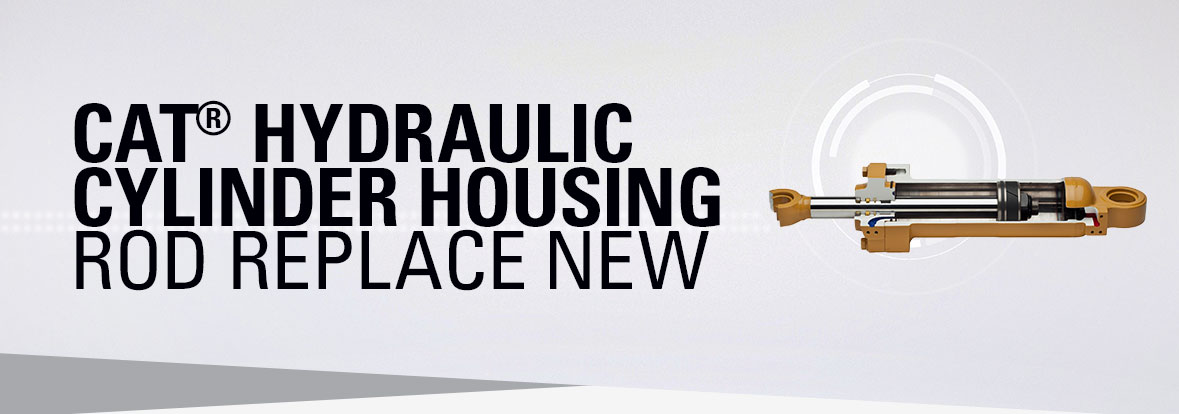

CAT® Hydraulic Cylinder Rod Replace with New

Finning Self Service Repair Options

Cat Hydraulic Cylinder Rods are induction hardened and chromed for superior scratch and dent resistance. Additionally, Cat Hydraulic Cylinder Rods also feature a friction–welded eye joint for maximum durability.

Warning Signs

Watch for these common repair indicators

  • Excessive Drifting
  • Leaking
  • Increased Cycle Times
  • Reduced Cylinder Speed
  • Bent Rod, Scored/Scratched Rod
  • Damaged Cylinder
  • Decreased productivity
  • Contaminated hydraulic oil
  • Damaged hydraulic cylinder seals
  • Hydraulic oil pressure above or below manufacturer recommended specifications

Elements of the Hydraulic Cylinder Rod – Replace With New
Self-Service Option


Recommended Parts List:

  • Hydraulic Cylinder Seal Kit
  • Cat Hydraulic Cylinder Rod assembly
  • Hydraulic Cylinder Cat seal kit
  • New Cat Hydraulic Cylinder
  • Cat Reman Hydraulic Cylinder
  • Kidney Loop/Flush/Change Hydraulic System Fluid
  • S•O•SSM Sampling Kit

Repair Instructions:

You can download a PDF with your purchase

Recommended Tooling List:

  • Hydraulic Cylinder Repair Stand(s)
  • Retaining Ring Pliers Lifting Device
  • Lifting Straps
  • Hydraulic Line Contamination Control
    (Caps, Plugs, Pans, etc.)
  • Hydraulic Press/Accessories
  • Bearing Puller(s)
  • Bearing Mount Compound
  • Seal Guide
  • Hydraulic Cylinder Hone
  • Seal Pick
  • Bearing Puller Adapter

Additional Options:

  • Pins
  • New Cat Hydraulic Cylinder
  • Cat Remanufactured Hydraulic Cylinder
  • Kidney Loop/Flush/Change Hydraulic System Fluid
  • New Hydraulic Cylinder Service Bench
  • S•O•S Services

Genuine
CAT Parts

Backed by our standard
Cat warranty

Service
Instructions

Including safety &
cleanliness guidelines

Recommended
Tooling

With option to purchase

Technical
Support

From Finning experts
